Metal cabinets for classified documents
In Poland we have two guidelines for certification of cabinets for storage of classified documents. Guidelines the Council of Ministers which is mandatory for all institutions operating in Polish excluding entities subordinated to the Ministry of National Defence - there are valid his requirements.
Meet the requirements for storage of classified documents contained in the Decree of the Council of Ministers dated 29.05.2012 concerning the physical security measures used to protect classified information.
In the group of cabinets for confidential documents we have cabinets that meet the following requirements:
- cabinets clas s A, type 1
- cabinets class S1, type 2
- cabinets class S2, type 3
- cabinets class 0, type 4
They have a certificates of the Institute of Precision Mechanics, reliable and secure locking system, doors locked from the four corners
Shelf load capacity - 50 kg
Door opening angle 0 - 90°.
Standard colors:
- gray No. 7035 according to RAL palette
Equipment options for all cabinets:
- internal boxes
- additional shelves
- sealingholders
- mounting holes in the bottom
- fixing screws
Metal cabinets class A, type 1
They are used in any office to store confidential documents, personal records and other important documents. Made of steel sheet thickness of 1.00 mm. bolt mechanism is locked with a key lock Class A, from the door hinges doors are locked constant slat over the entire height of the door.
Door opening angle – 90°
Additional equipment;
- additional key loc, combination lock, electronic lock
|

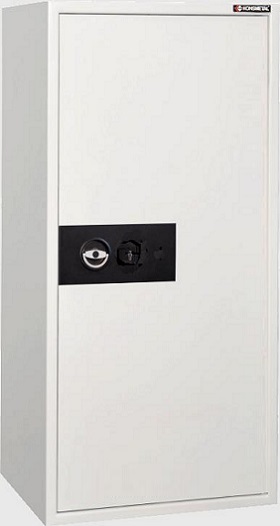

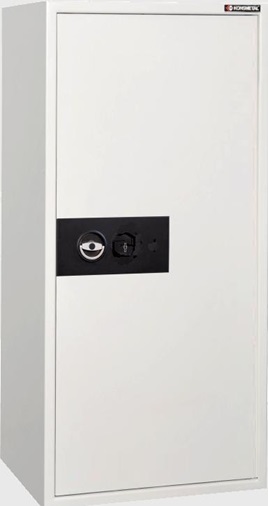

MS1M/A 150
|

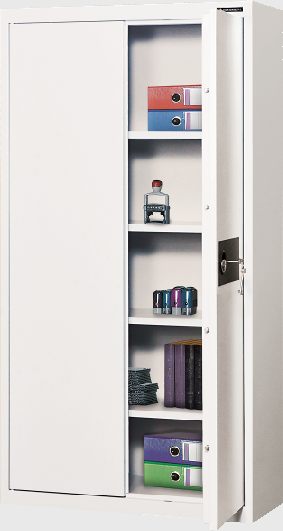

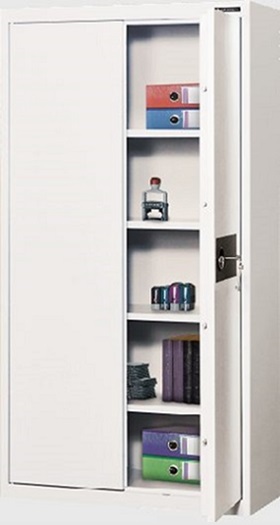

MS2M/A 190
|
Parameters of cabinets grade A typ 1
Name |
Dimensions external (mm) |
Weight (kg) |
Shelves (pcs) |
H |
D |
W |
One-door cabinetsSzafy 1-no drzwiowe |

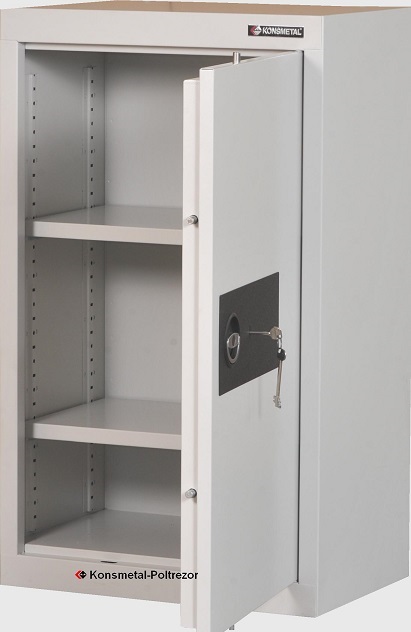

MS1M/A 90 |
900 |
500 |
400 |
30 |
2 |

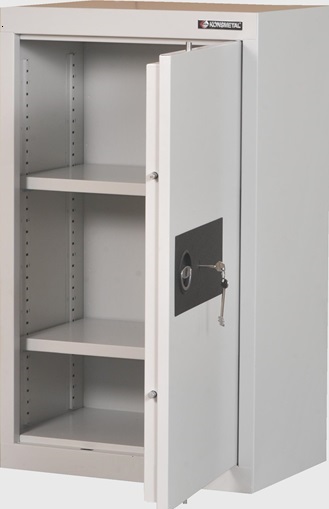

MS1M/A 100 |
1000 |
600 |
400 |
36 |
2 |
MS1M/A 150 |
1500 |
700 |
400 |
51 |
3 |
MS1M/A 190 |
1908 |
602 |
390 |
63 |
4 |
Two-door cabinets |
MS2M/A 190 |
1908 |
994 |
390 |
84 |
4 |
|
Metal cabinets class S1 type 2
They are used in every law firms in the offices and are designed for storage of “secret" documents, and documents that require special care. They have also certified as cabinets for weapons and ammunition. Made of steel sheet thickness of 3 mm, moving bolts lock doors on three edges, from the door hinges doors are locked constant slat over the entire height of the door.
Additional equipment;
- additional key loc, combination lock, electronic lock
|
|
SD1/S1 185S
|
sParameters of cabinets grade S1 (TYP 2)
Name |
Dimensions external (mm) |
Weighy (kg.) |
Shelves (pcs) |
H |
D |
W |
One-door cabinets |
ML 45/S1 |
450 |
400 |
440 |
41 |
1 |
ML 67/S1 |
670 |
56 |
ML 100/S1 |
1000 |
490 |
84 |
2 |
SD1/S1 150S |
1500 |
600 |
440 |
106 |
3 |
|
1850 |
600 |
127 |
4 |
Two-door cabinets |
SD2/S1 185D |
1850 |
1000 |
440 |
195 |
4 |
|
Metal cabinets class S2, type 3
Cabinets for top secret documents, two-layer steel construction,outer layer made of steel sheet thickness of 3 mm, inner layer made of steel sheet thickness of 1.5 mm. Bolts are moved by the handle and locked with a combination lock type 3.
- Door opening angle – 180 °
Additional equipment ;
- replacement lock type 3 to type 4 / mechanical combination lock protected against radiological attack. Standard cabinets class S2 have a 9 points for the K1, after changing standard locks on locks protected against radiological attack will have a 12 points for the K1.
|
SD1/S2 150S
|

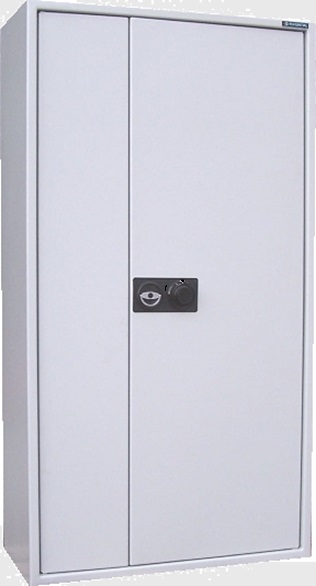

SD2/S2 185D
|
|
Metal cabinets class 0, type 4
Cabinets for top secret documents, multilayer steel construction. Bolts are moved by the handle and locked with two combination lock class B type 3.
Door opening angle – 90 °
Additional equipment:
- replacement lock type 3 to type 4 / mechanical combination lock protected against radiological attack. Standard cabinets class 0 have a 12 points for the K1, after changing standard locks on locks protected against radiological attack will have a 16 points for the K1.
|

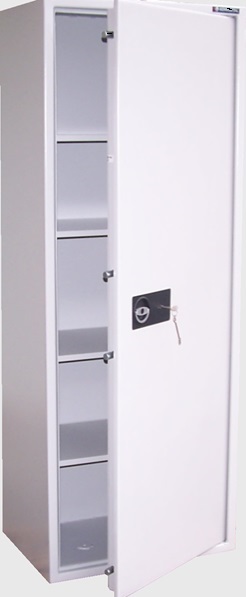

SD1/S2 185S
|
SD2/0 185
|
|
Parameters of cabinets grade S2 and grade 0
Name |
Dimension external (mm). |
Grade S2 |
Grade 0 |
Shelves (pcs) |
Klasa S2 |
Klasa 0 |
wys. |
szer. |
gł. |
One-door cabinets |
SD1/S2 150S |
SD1/0 150S |
1500 |
600 |
440 |
139 |
232 |
3 |
SD1/S2 185S |
SD1/0 185S |
1850 |
172 |
293 |
4 |
Two-door cabinets |
SD2/S2 185D |
SD2/0 185D |
1850 |
1000 |
440 |
275 |
457 |
4 |
|
Metal cabinets for confidential, secret and top secret documents meet the requirements specified in the Ordinance No. 59/MON of the Minister of National Defense of December 2017 and 46/MON of December 2013.
Metal cabinets class A – for confidential documents. These are cabinet models as at "Parameters of cabinets grade A type 1", however, a key lock must be present in their closing, it cannot be replaced by a mechanical or electronic combination lock.
Metal cabinets c lass B – for secret documents.Made of steel sheet thickness of 3 mm, for use as a personal filing cabinets. Equipped with a two certified locks grade B: key lock and combination lock.
Metal cabinets class C – for top secret documents. Made of two layers of steel sheet with a total thickness of 4.5 mm. Similarly to class B cabinets, the lock is made with two Class B locks, a key lock and a mechanical combination lock, in these models the combination lock is protected against radiological x-rays.
They have a certificates of the Institute of Precision Mechanics, reliable and secure locking system, doors locked from the four corners
Shelf load capacity - 50 kg
SzS are single-door, MS2 are two-door
Corrosion protection and aesthetic painted with structural paint powder
Standard colors:
- Gray No. 7035 according to RAL palette
Additional equipment:
- Individually lockable interior deposit box
- Additional shelves
- Sealingholders

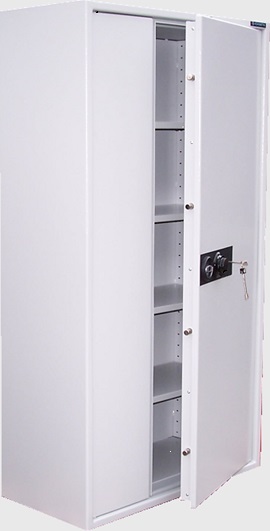

Metal cabinets class B and class C – for secret and top secret documents

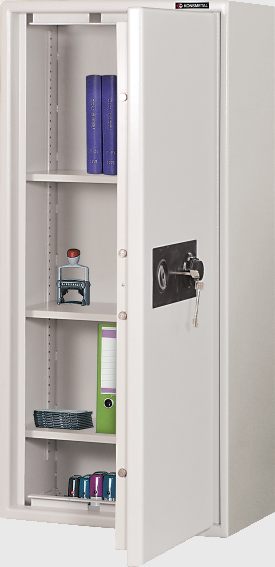

MS1/B 150, MS1/C 150 |
MS2/B 185, MS2/C 185 |
Name |
Dimensions (mm.) |
Weight (kg.) |
Shelves (pcs) |
grade B |
grade C |
H |
W |
D |
grade B |
grade C |
One-door cabinets |
MS1/B 150 |
MS1/C 150 |
1500 |
700 |
500 |
131 |
180 |
3 |
MS1/B 185 |
MS1/C 185 |
1850 |
700 |
500 |
155 |
210 |
4 |
Two-door cabinets |
MS2/B 185 |
MS2/C 185 |
1850 |
1000 |
500 |
229 |
270 |
4 |
