DataGuard 30 |
DataGuard 50 |
![]() Data Guard 90 |
DataGuard 130 |
Two-hours resistance to high temperatures. They have certificate 120 Diskette according to NT Fire 017, it guarantees the security of the stored magnetic and optical media, minimum 120 minutes in extreme fire conditions (above 1000° C). Temperature inside the cabinet is not more than 30 ° C, and will not exceed 55° C, this temperature can be critical for many magnetic and optical. Doors with “panic closed” - if you see a fire just push firmly to provide complete safety of the stored magnetic and optical media. Available 4 sizes with a capacity of 30 to 128 liters. Closing the door with a key lock.
Technical parameters of DataGuard
Name | Dimensions external (mm) | Dimensions internal (mm) | Weight (kg. | Capacity (dm3) | Shelves (pcs) | ||||
H | W | D | H | W | D | ||||
DataGuard 30 | 530 | 546 | 566 | 280 | 346 | 306 | 145 | 30 | 1 standard shelf |
DataGuard 50 | 700 | 450 | 190 | 48 | 1 standard shelf, 1 retractable shelf | ||||
DataGuard 90 | 1025 | 590 | 775 | 330 | 263 | 88 | 1 standard shelf, 2 retractable shelves | ||
DataGuard 130 | 1025 | 702 | 502 | 330 | 128 |
![]() DataPlus+ 110 |
![]() DataPlus+ 165 |
![]() DataPlus+ 220 |
![]() DataPlus+ 315 |
![]() DataPlus+ 555 |

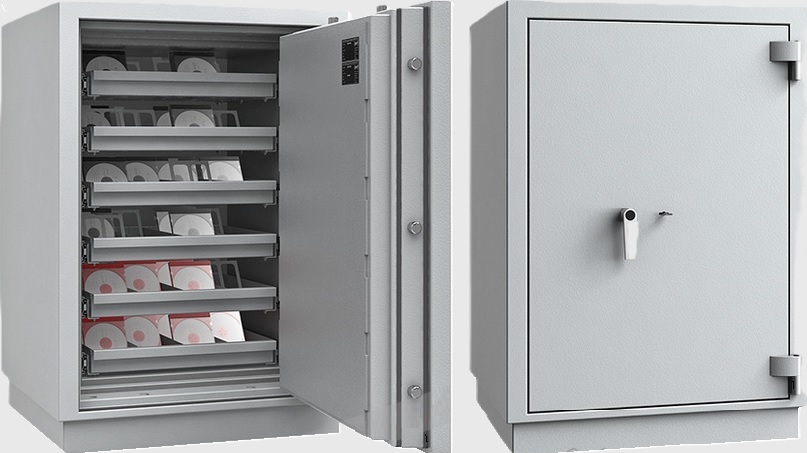

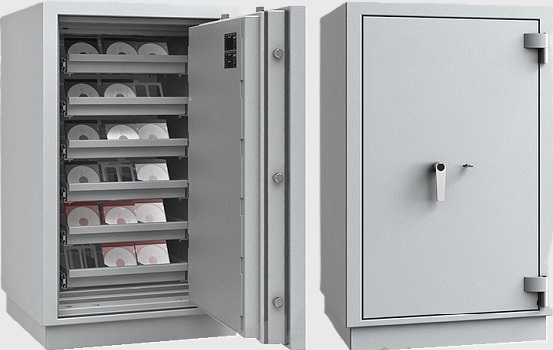

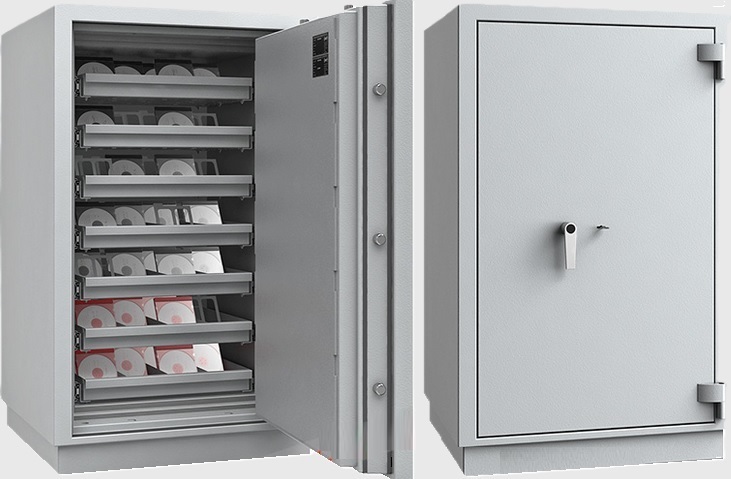

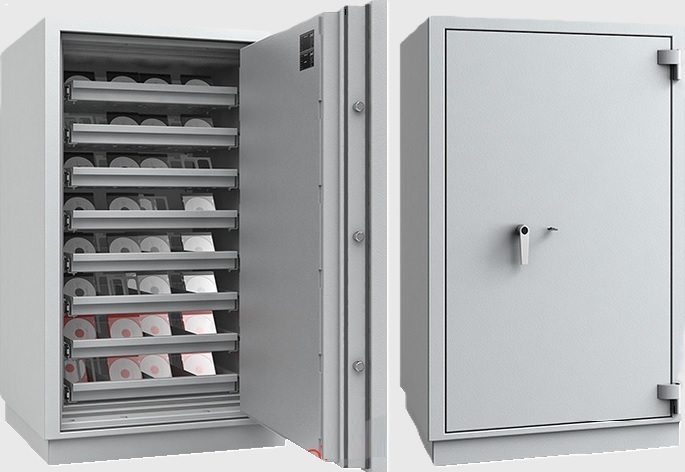

The newest generation of fireproof cabinets Chubbsafes on magnetic and optical media, consisting of five models with capacities ranging from 115 to 577 liters. Cabinets provide a two-hour fire resistance according to standard ECB-S. In addition to fire resistance they have a certificate burglar protection grade S2. They have a system of bolts which perfectly protecting against unauthorized access. Advantage of cabinets is large capacity relative to low weight. Wide choice of interior accessories and possibility of installing additional shelves at intervals selected by the user allows maximum use of interior space. In case of fire just strongly push the cabinet doors to ensure the full protection of stored media from fire. Can be fixed to the ground. Possibility of installing one or two locks: key lock, combination lock or electronic lock. As standard safes do not have any equipment, the size of the safe and equipment should be chosen based on the planned amount and type of storage media.
Technical parameters of DataPlus +
Name | Dimensions external (mm) | Dimensions internal (mm) | Weight (kg.) | Capacity (dm3) | ||||
H | W | D | H | W | D | |||
DataPlus+ 110 | 911 | 746 | 720 | 565 | 490 | 400 | 315 | 111 |
DataPlus+ 165 | 1191 | 845 | 390 | 167 | ||||
DataPlus+ 220 | 1471 | 1125 | 490 | 221 | ||||
DataPlus+ 315 | 1941 | 1595 | 640 | 313 | ||||
DataPlus+ 555 | 1036 | 770 | 1570 | 780 | 450 | 860 | 556 |
Additional equipment DataPlus+
Fixed shelves |

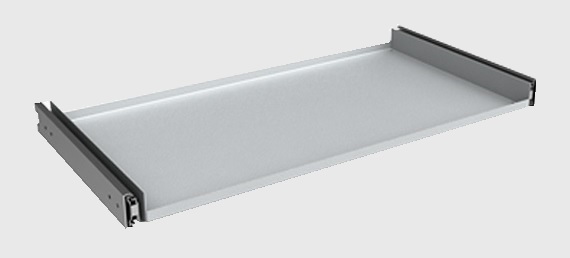

![]() Retractable shelves |

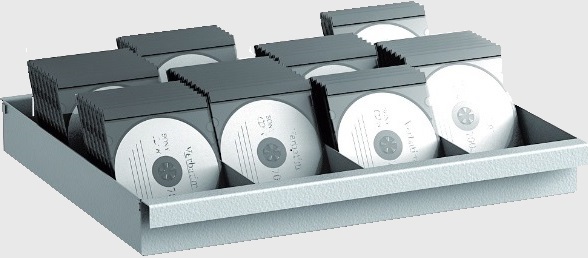

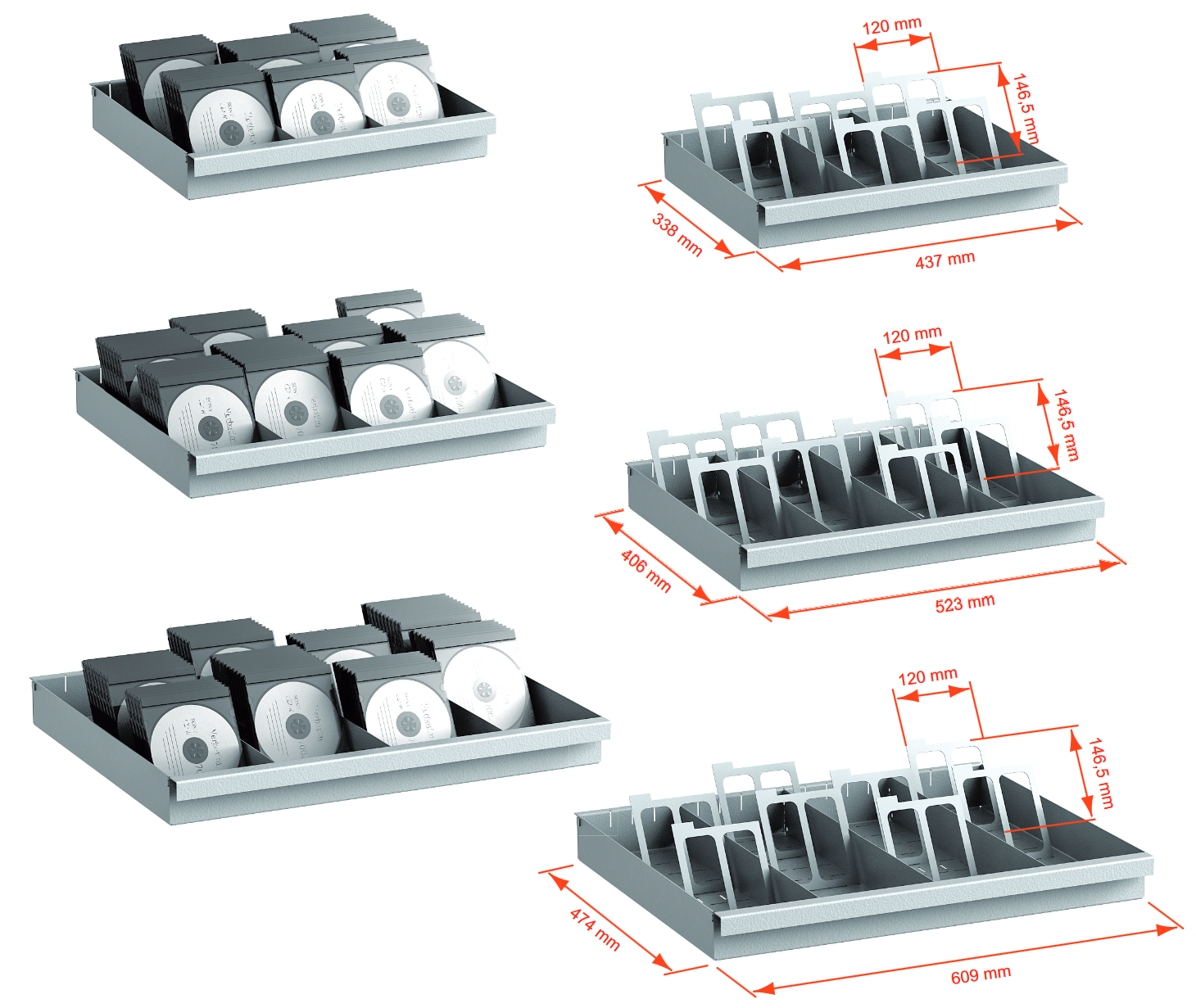

![]() Retractable shelves with separators |
Internal boxes |
