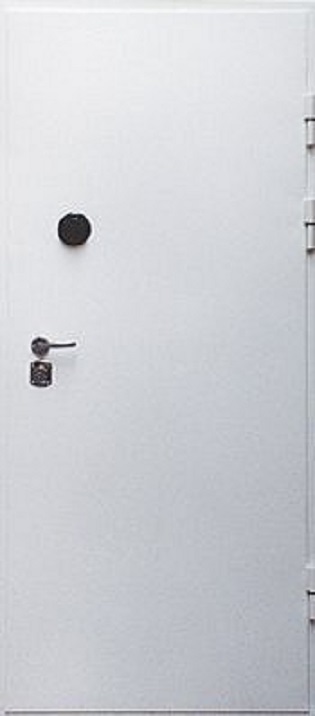

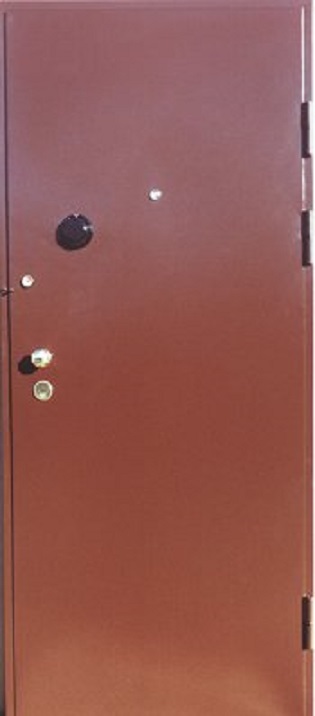

Security doors for classified offices



Offices doors        Drzwi antywłamaniowe kancelaryjne
Offices doors



Manufactured in accordance with the requirements for the door to the storage of classified documents contained in the Council of Ministers regulation dated 29.05.2012, and Ordinance No. 57 and 58/MON of December 2011.

Security doors class RC4, are made in accordance with the standards PN90/B-92270 and PN-EN 1627: 2011.

Made in any size.

Layer doors are made of steel sheet thickness of 1.5 or 2.0 mm (depending on the classification of the room). Welded frame construction, reinforced basis of bent profiles, the space between the profiles filled with mineral wool. Seals on all four edges. Leaf on the three ball bearing hinges ø22. Standard equipped with a threshold of 20 mm height. From the hinge door are locked with three constants bolts.

Layer doors are made of steel sheet thickness of 1.5 or 2.0 mm (depending on the classification of the room). Welded frame construction, reinforced basis of bent profiles, the space between the profiles filled with mineral wool. Seals on all four edges. Leaf on the three ball bearing hinges ø22. Standard equipped with: a threshold of 20 mm height. From the hinge door locked with three constants bolts.

Used as a internal doors that open to the outside or inside of the room.

Technical characteristics:

- Central key lock class C

- Combination lock class B

- C rail or angular frame with a thickness of 3 mm

- Protective sealing

- Single leaf or double leaf door

- Possibility to making in a fireproof EI60 version (optional)

- Leaf weight without additional equipment: 40 to 45 kg/m2

Doors can be finished in four types of surface:

- Powder coated in any color from the RAL palette

- PVC woodlike veneer <models PVC veneer>

- Decorated with MDF (6 or 10 mm) <models MDF>

- Decorated oak veneer (6 or 10 mm) <models oak veneer>

Characteristics door DC3.1 KT-M:

- Resistance to burglary - class C according to PN-90/B-92270

- Resistance to burglary - class 4 according to PN-ENV 1627:2006

- Resistance to multiple opening and closing - class 6 according to PN-EN 12400: 2004

- Resistance to wind load - class 5C according to PN-EN 12210: 2001

- Resistance to corrosion - category C3 according to PN-EN ISO 12944-2: 2001

- Waterproof - class 3A according to PN-EN 12208: 2001

- Sound insulation - Rw = 40 dB according to PN-EN ISO 717-1: 1999

- Thermal transmittance – 2,2 UW (W/m2 x K) according to PN-EN ISO10077-1: 2007

- Air permeability - class 4 according to PN-EN 12207: 2001
