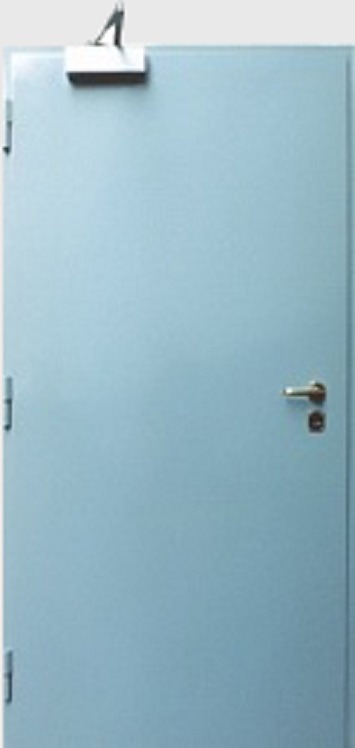

Fireproof security doors




Powder coated doors

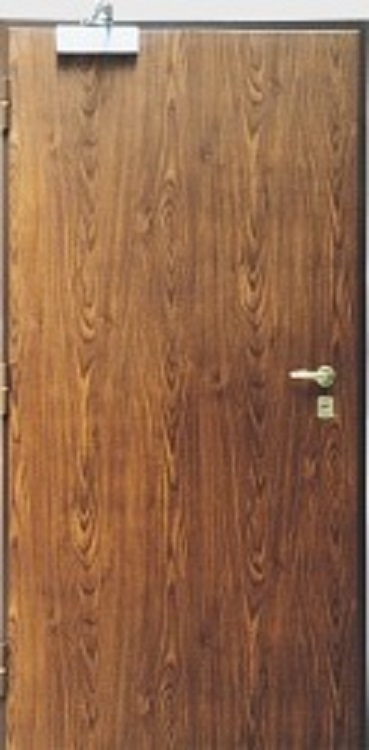

Doors covered PVC veneer

 Fireproof door have burglar resistance certificate class C and class RC4 with a fire protection certificate class EI60.

The door leaf is composed of two steel sheets 1.5 mm thick. The frame construction reinforced of basis of bent profiles, the space between the profiles is filled with mineral wool and special fireproof panels. The door leaf around the perimeter have a rubber gaskets and gaskets which increases many times their volume under the influence of high temperature.

They can be used as external and internal doors, opening to the outside or inside of the room.

Technical characteristics:

- Under handle lock class C

- Door frame 3 mm thick

- 4 ball bearing hinges

- Threshold of 20 mm height

- 3 burglarproof blockade on the hinge side

- Door closer

Additional equipment:

- Additional upper door lock

- Electric doorstrike

- Electromagnetic clamp

 Doors can be finished in four types of surface:

- Powder coated in any color from the RAL palette

- PVC woodlike veneer

- Decorated with MDF (6 or 10 mm)

- Decorated oak veneer (6 or 10 mm)

Properties of fireproof security doors:

- Fire resistance - EI60 according to PN-EN 13501-2 + A1: 2009

- Resistance to burglary - class C according to PN-90/B-92270

- Resistance to burglary - class 4 according to PN-ENV 1627:2006

- Resistance to multiple opening and closing - class 6 according to PN-EN 12400: 2004

- Resistance to wind load - class 5C according to PN-EN 12210: 2001

- Resistance to corrosion - category C3 according to PN-EN ISO 12944-2: 2001

- Waterproof - class 3A according to PN-EN 12208: 2001

- Sound insulation - Rw = 47 dB according to PN-EN ISO 717-1: 1999

- Thermal transmittance – 2,5 UW (W/m2 x K) according to PN-EN ISO10077-1: 2007

- Air permeability - class 2 according to PN-EN 12207: 2001

- Coefficient of sound insulation Rw = 47 dB
